This article addresses a persistent issue encountered by users integrating AutoCAD DWG files into Rhino 3D modeling projects. Specifically, it focuses on problems with how Rhino handles external references (Xrefs) from AutoCAD, impacting project assembly and file management. This guide is tailored for experienced technology users and CAD professionals seeking reliable solutions for complex project workflows.
Understanding the Problem: Xref Integration Challenges
The core issue lies in Rhino’s handling of DWG files that contain AutoCAD Xrefs. When these DWGs are inserted into Rhino as block instances, particularly with settings like ‘Read linked blocks from this file’ unchecked and ‘Layer style’ set to ‘Reference,’ inconsistencies arise.
Scenario 1: Non-Cross-Referenced DWGs
In a simplified scenario, where individual DWG files (e.g., ‘A Grid,’ ‘A GF,’ ‘A 1F’) are not cross-referenced to each other within AutoCAD, their insertion into Rhino works as expected. Each DWG appears individually, allowing for distinct manipulation and visibility control. This setup is straightforward and avoids immediate complications.
Scenario 2: DWGs with AutoCAD Xrefs (Overlay)
The complexity escalates when DWGs incorporate Xrefs that are set as ‘Overlay’ in AutoCAD. In this configuration, each DWG contains an Xref to others. While this approach is intended to maintain a linked structure, its implementation in Rhino leads to unpredictable behavior.
Observed Issues:
- Inconsistent Visibility: Only the first floor’s Xrefs might display correctly, while others fail to render. This inconsistency can extend to all files if Xrefs are left enabled when saving the DWGs.
- Disappearing Drawings: A more critical problem arises when the Rhino (.3dm) file is saved and reopened. Entire drawings, such as the first floor, can disappear, rendering the project incomplete and unmanageable.
Scenario 3: DWG Containing an Xref File
A third method involves inserting a master DWG file (e.g., ‘xrefs.dwg’) that itself contains Xrefs to other DWG files. While this approach consolidates the references, it typically results in all drawings being overlaid on top of each other. This eliminates individual control over the visibility of each DWG, which is a significant drawback for detailed design work.
Persistent Problems and Potential Workarounds

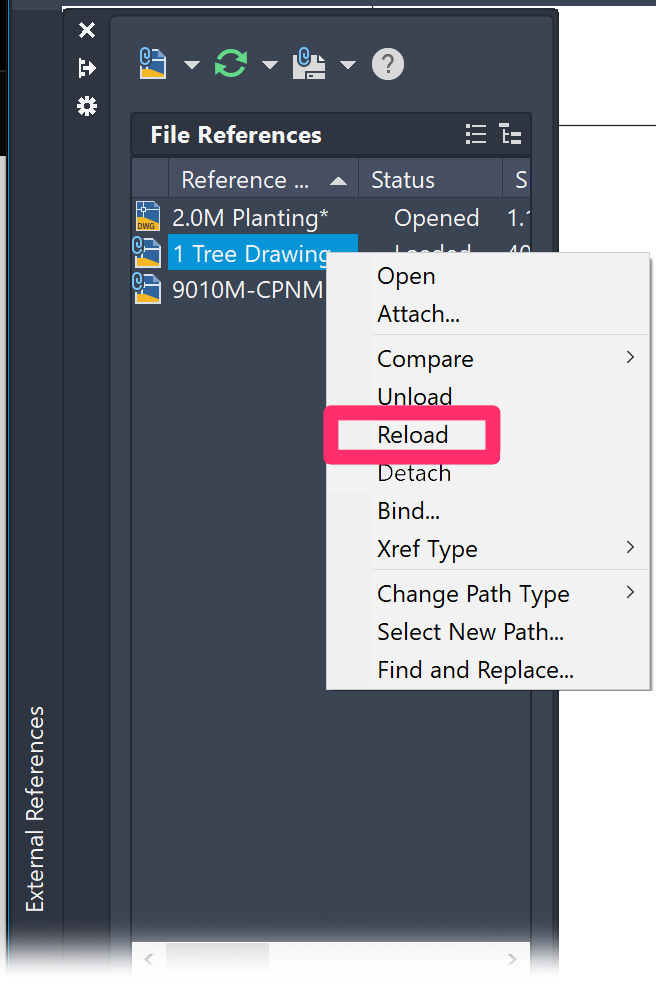

Beyond the visibility and disappearance issues, users may also encounter DWGs that fail to load upon reopening a Rhino file. This often manifests as a large black label indicating a broken or missing file path. Such errors disrupt the modeling process and necessitate troubleshooting the xref’s integrity.
While the provided simplified project aims to replicate these issues, the user notes that some problems, like frequent xref loading failures with visible path labels, haven’t been consistently replicated within the simplified setup. This suggests that the root cause might be influenced by specific file configurations or Rhino versions.
Recommendations for Stable Xref Management
To mitigate these xref-related challenges when working with AutoCAD DWGs in Rhino, consider the following:
- Review AutoCAD Xref Settings: Ensure that Xrefs in your AutoCAD files are set to ‘Attachment’ rather than ‘Overlay’ if you intend for them to be fully incorporated and visible across different host files. However, if ‘Overlay’ is a necessary setting for your workflow, be prepared for potential inconsistencies in Rhino.
- Simplify Xref Hierarchy: For complex projects, consider simplifying the Xref structure. Instead of deeply nested Xrefs, try to manage them at a higher level or consider consolidating essential geometry into fewer files where feasible.
- Externalize Xref Management: If direct Xref insertion into Rhino proves problematic, explore managing Xrefs externally within AutoCAD and then importing the consolidated DWGs. This might involve creating specific “master” DWGs for Rhino import.
- Test in Different Rhino Versions: If possible, test your files in different versions of Rhino, especially newer releases, as software updates often include bug fixes and improved compatibility with external file formats.
- Check File Paths: Always ensure that the file paths for all DWG and Xref files are correct and accessible from where the Rhino project is saved. Broken paths are a common cause of loading failures.
- Utilize Rhino’s Block Editor: After inserting DWGs as block instances, use Rhino’s Block Editor to examine and potentially re-import or re-link any problematic Xrefs within the block definition.
Addressing these AutoCAD Xref issues within Rhino requires a methodical approach, combining an understanding of both software’s functionalities and a willingness to experiment with different file management strategies. By carefully managing Xrefs and testing workflows, users can achieve more reliable project integration.
