Autodesk® Revit® users can significantly accelerate the process of generating reinforcement for standard concrete structures with Naviate Rebar. This powerful tool automates a traditionally time-consuming aspect of structural engineering, allowing professionals to focus on design and analysis rather than manual detailing.

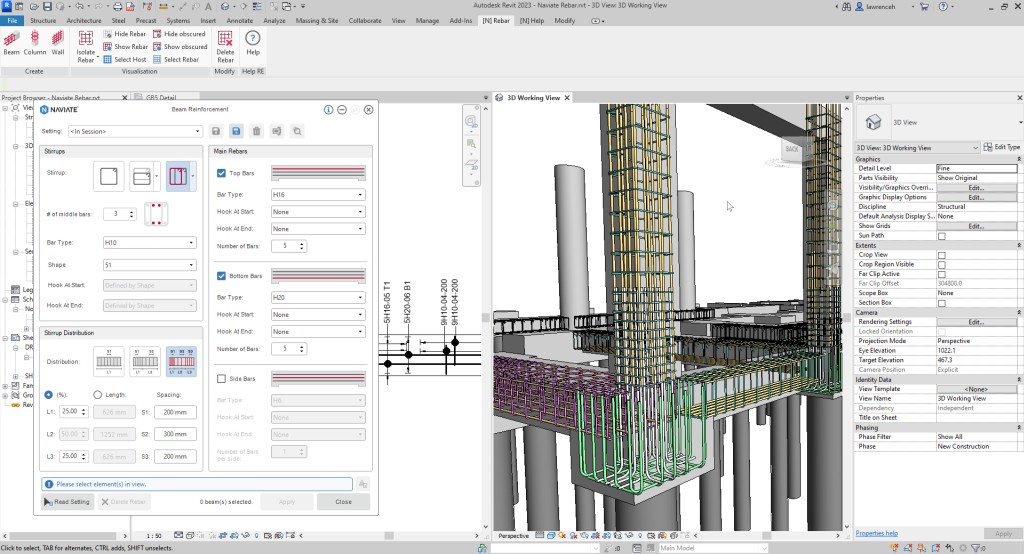

The core functionality of Naviate Rebar lies in its intuitive workflow. Users begin by selecting the specific concrete elements within their Revit model that require reinforcement. Subsequently, they can launch the appropriate tool and define the parameters governing the reinforcement process. The software is designed to support a variety of common concrete elements, including beams, columns, and walls, making it a versatile solution for many projects.
Beyond automated reinforcement generation, Naviate Rebar integrates with other Naviate tools to enhance project management. The Rebar Numbering feature, found within Naviate Structure, is particularly noteworthy. This functionality allows users to efficiently identify all identical rebars throughout a project. Once identified, these rebars can be numbered and exported in various standard formats such as Excel, XML, or BVBS files. This comprehensive approach extends to fabric sheets (nets), where specific data like net area, total area, net weight, and total weight are meticulously captured. Users can configure settings directly within the Rebar Numbering dialog, eliminating the need to pre-set configurations in separate modules.
Naviate Accelerate, a component of Naviate Structure, provides access to common specifications and features tailored for different disciplines within Revit. By selecting a specific discipline, users are presented with the most relevant Naviate tools for their work tasks and project planning. Naviate Structure itself offers a suite of general features, including Element Filtering, Element Coloring, Parameter Editing, and publishing/exporting capabilities, all designed to boost the efficiency of structural engineers working with reinforcement and structural elements in Revit.
For those interested in experiencing the benefits firsthand, a 30-day free trial of Naviate Rebar is available. Registration can be completed via the provided link. It is important to note that this add-in utilizes a custom installer rather than the standard App Store installation process.
