The latest release of Autodesk® Revit® brings a host of new features and enhancements that are particularly beneficial for Enscape users. These updates focus on improving collaboration, streamlining workflows, and enhancing visual fidelity in architectural visualizations. This article delves into the key Revit 2025 features that Enscape users should be aware of, including advancements in Toposolid, material management, wall wrapping controls, and mullion profiles.
Enscape’s recent release of version 4.0 also introduces optimizations for Revit Worksharing, enabling more efficient collaboration on workshared projects. Users will experience improved user interface optimizations when working within shared Revit models, addressing various errors encountered during collaborative sessions, such as when modifying views, visual settings, or site context elements. While certain limitations may persist due to the underlying communication dynamics between Revit and Enscape, the overall experience for collaborative work has been significantly enhanced.
Key Revit 2025 Features for Enscape Users
Extensible Storage (Schema) Issues Addressed
A significant issue that affected Revit 2024.0 and 2024.1 upgrades involved non-Autodesk Revit add-ins causing conflicts. These conflicts could corrupt files, requiring Autodesk support intervention or an upgrade to Revit 2025 to resolve. For those using Revit 2024, it’s crucial that all project members are on version 2024.2. If files were upgraded using earlier 2024 versions and exhibit problems, a Revit add-in called Schema Scanner Add-On can identify issues. However, the most reliable solution for affected 2024 files is often migrating to Revit 2025. This problem stemmed from two non-Autodesk add-ins conflicting, impacting shared memory and potentially causing issues even when files were only open in the same Revit session. For more detailed information, consult Autodesk’s technical documentation on Schema Conflicts in Revit 2024.
Enhanced Toposolid Functionality
The Toposolid element, introduced previously, has seen substantial improvements in Revit 2025. For Enscape users, the most impactful enhancement is the addition of “surface smoothing.” Previously, Toposolid elements displayed a triangulated surface, leading to an unrealistic ground appearance in renderings. With surface smoothing enabled, this visual treatment now extends to Enscape, providing a more naturalistic ground surface.
Key enhancements to Toposolid include:
- Toposolid Smooth Shading: This feature visually smooths the surface in various visual styles (shaded, consistent colors, textures, realistic) and in exports. While surface patterns may not display with smooth shading, the overall visual improvement is significant.
- Shaft Elements: In Revit 2025, shafts within a Toposolid will now correctly terminate at their specified bottom position, unlike previous versions where they cut through indefinitely.
- Face-Based Family Hosting: The excavated edges of a Toposolid can now host face-based content, such as planting families, offering greater flexibility in site design.
- Additional Excavation Options: Toposolids can now be excavated using Floors, Roofs, and Building Pads. This is more efficient than older methods that required additional slab elements. It’s important to note that the Building Pad command was removed in Revit 2024, but existing ones can still be used in upgraded files. Contour lines remain visible during sub-element modification, and excavation volumes are calculated and listed in properties. A new “Toposolid by Face” command is also available on the Massing/Site tab.
Improved Material Browser

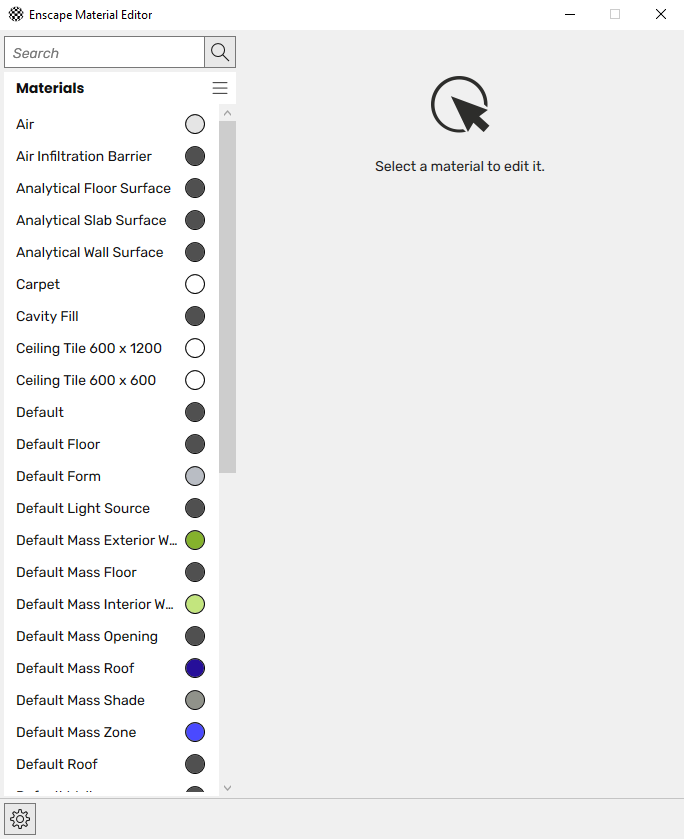

While not directly impacting Enscape’s rendering engine, the enhanced Material Browser in Revit 2025 significantly improves material management, a crucial aspect of any ArchViz workflow. Users can now select multiple materials for deletion or loading into a project simultaneously. Furthermore, the generation of material thumbnails has been optimized for faster loading, especially when using the new “Quick” render setting option for the entire project.
Wall End Wrap Controls
Enscape users will benefit from the new controls for how wall materials wrap at their ends. When a wall type has “Wrapping at Ends” enabled and its layers are set to wrap, new icons allow for individual control of wrapping on each side of a selected wall. Previously, this was an all-or-nothing setting, requiring the creation of multiple wall types. Now, users can simply select a wall and utilize these icons to control wrapping independently for each end, allowing one side to be wrapped while the other is not. These icons only appear when wrapping is enabled for the wall type. For related insights into parametric control of wrapping at inserts, consult this post and this one.
Enhanced Mullion Profile Capabilities
A significant advancement for Enscape users lies in the expanded capabilities of mullion profiles. These profiles can now incorporate multiple loops, which are accurately represented in Enscape. These loops can be internal, cutting into a larger loop, or external, adding extra geometry. An example demonstrates an internal loop emphasizing a curtain wall system’s pressure plate and cap, alongside an external loop. While the way curtain wall mullions join has not changed, requiring consideration for transitions between complex profiles, the inability to assign multiple materials to different parts of a mullion remains a drawback for Enscape users.
Auto Join and Lock Parallel Walls
Revit 2025 optimizes workflows for firms that manage wall types using separate elements for each construction layer. This feature enables proactive “Join” and “Join & Lock” for touching parallel walls when creating them. This significantly improves modeling efficiency, especially when material layers are modeled as distinct wall types. For instance, a new wall layer can instantly join an adjacent wall, which is then automatically cut by a door opening, resulting in a single door cut across multiple separate walls. Previously, this required manual joining. It is important to note that for this automatic functionality, the walls must be touching. Interestingly, in the manual joining scenario, walls that do not touch can also be joined, and cutouts will automatically transfer across the gap.
Graphics Card Driver Update
While not a Revit 2025 or Enscape 4.0 feature, ensuring the latest graphics card driver is installed is often crucial when encountering graphical or performance issues. The compatibility of your graphics driver (also known as the video driver or GPU) with Revit can be checked within the Options dialog. By comparing the driver version shown in Revit with the one displayed in Windows Display Settings (accessible by right-clicking the desktop), users can ensure they are running the most up-to-date driver for optimal performance.
Conclusion
The new features in Revit 2025, coupled with the enhancements in Enscape 4.0, offer significant advantages for architects, designers, and engineers. By leveraging these updates, users can streamline their workflows, improve collaboration, and create even more compelling visualizations and virtual experiences from their Revit models. The seamless integration and high performance between Revit and Enscape empower users to explore design options effectively, communicate with clients, and showcase their projects with greater impact. Users looking to harness these advancements can explore options for enhancing their workflow and productivity with the latest versions of these powerful tools.
