In modern PC building culture, [keyword] vertical GPU mounting has become one of the most popular aesthetic upgrades among DIY enthusiasts. Instead of installing the graphics card directly into the motherboard’s PCIe slot, builders now reposition it vertically inside the case to showcase the GPU’s cooler design, RGB lighting, and industrial design language.
While this modification dramatically improves visual presentation, it also introduces important thermal and airflow considerations that every builder should understand before committing to the change.
Why Builders Choose Vertical GPU Mounting
The primary motivation behind vertical GPU mounting is visual impact. High-end GPUs are no longer just performance components—they are design statements. By rotating the card to face outward, builders can fully display the cooling shroud, fans, and lighting effects.

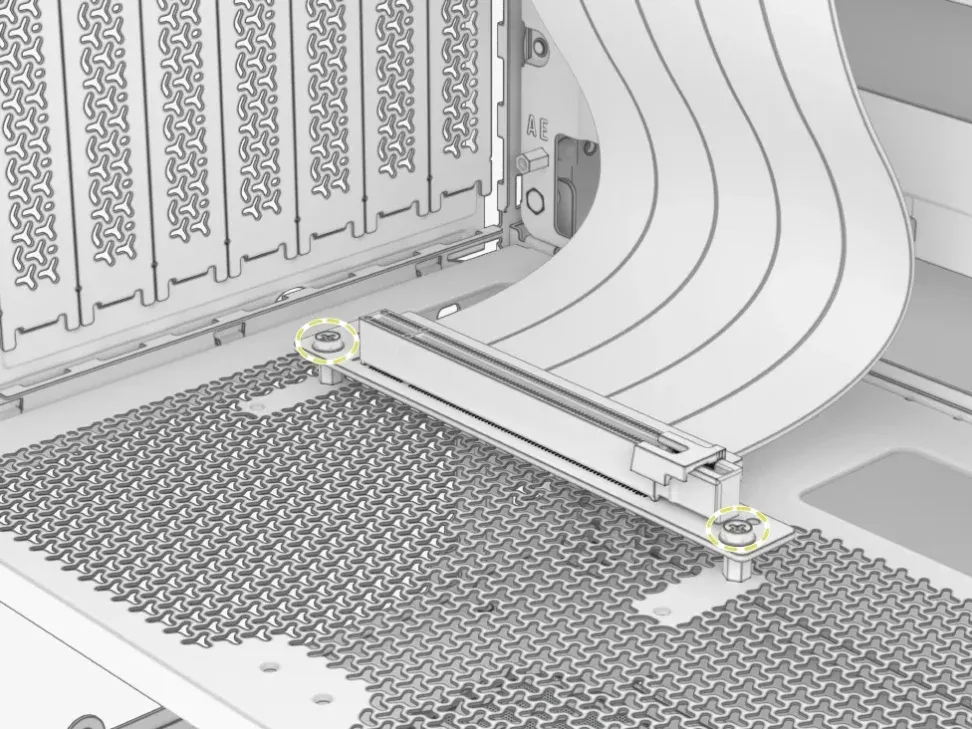

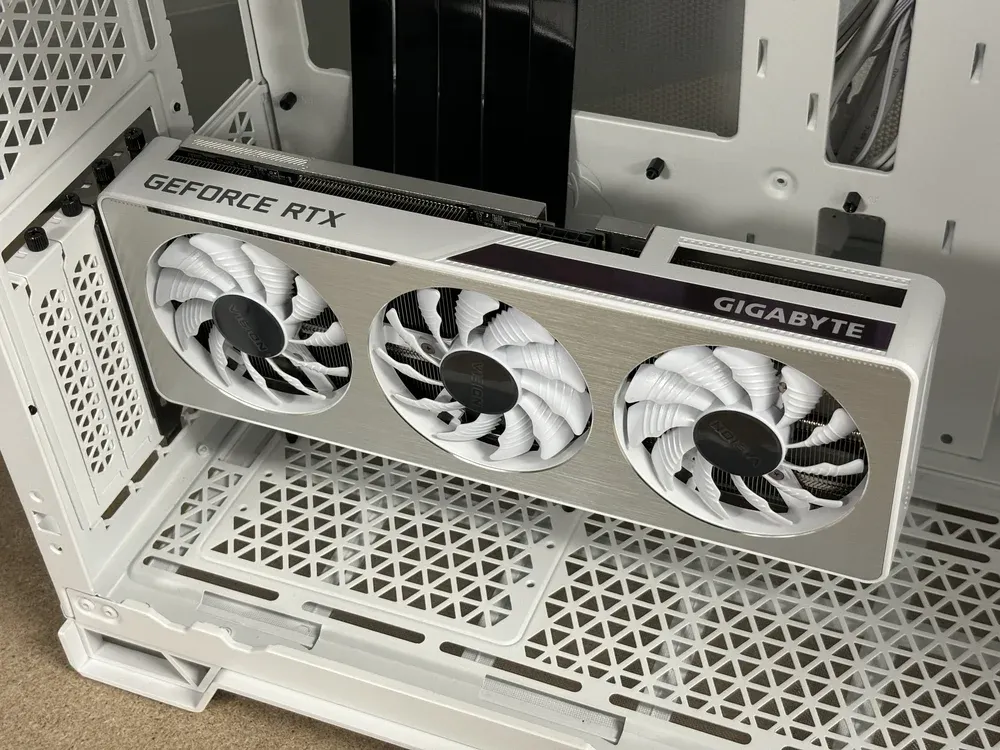

This setup typically requires a PCIe riser cable that connects the motherboard to the relocated GPU. The GPU is then secured to a vertical bracket or pre-installed mount inside the case.
However, this repositioning introduces physical constraints. The GPU is no longer anchored directly to the motherboard slot, meaning its final placement depends heavily on the case design and bracket positioning.
Reason #1: Reduced Air Intake and Restricted Airflow
One of the most significant trade-offs in [keyword] vertical GPU mounting is reduced airflow efficiency.
When a GPU is installed horizontally, its fans usually have direct access to fresh air entering from the front and bottom of the case. This creates a predictable airflow path that helps maintain stable thermals under load.

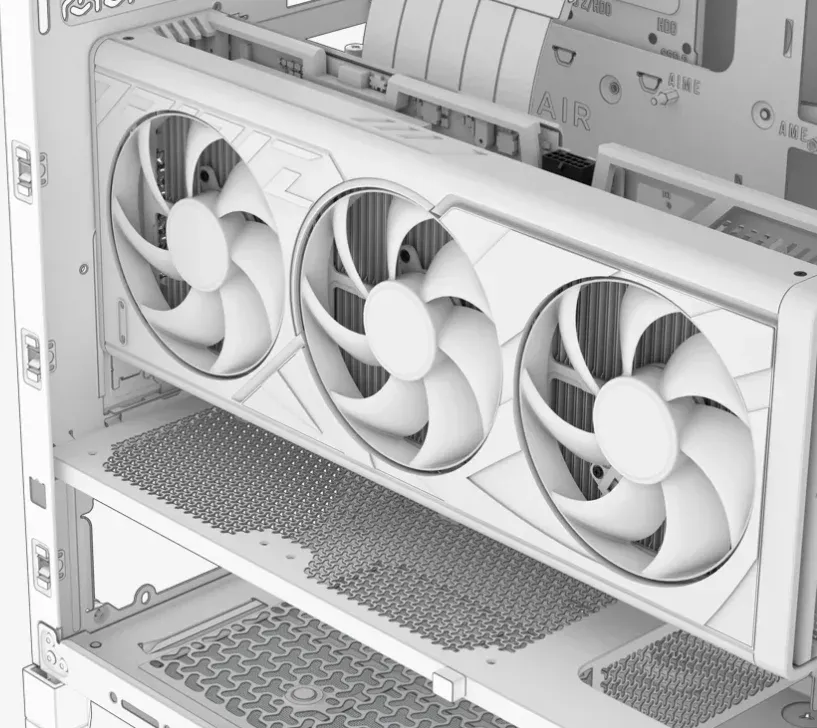

When mounted vertically, however, the GPU is often pushed closer to the side panel. This reduced clearance can limit the amount of cool air the fans can pull in, especially in cases with tempered glass panels or tight internal layouts.
Even a small reduction in airflow can raise GPU temperatures by several degrees. While modern GPUs are designed to operate safely up to their thermal limits (TJmax, typically around 90–95°C), sustained higher temperatures may reduce boost clock stability and overall performance headroom.
In practical terms:
- A GPU running at ~65°C horizontally may increase to ~70–75°C vertically
- A hotter baseline (around 75°C) may become problematic after vertical mounting
- Performance impact depends heavily on case airflow and fan configuration
The key variable is clearance. The closer the GPU fans are to the side panel, the more restricted the intake becomes.
Case Design and Mounting Variations Matter
Not all vertical GPU mounts are equal. Some cases position the GPU extremely close to the glass panel, while others provide more spacing using adjustable brackets or PCIe extension systems.
Aftermarket brackets can improve spacing, but they introduce additional cost and complexity. Builders must balance aesthetics, thermals, and budget when deciding whether the upgrade is worth it.
Reason #2: Vapor Chamber Orientation Limitations
Another often-overlooked factor in [keyword] vertical GPU mounting is how modern cooling technologies behave when reoriented.
Many high-end GPUs use vapor chamber cooling systems. These rely on a small amount of liquid inside a sealed chamber that evaporates and condenses to transfer heat efficiently across the heatsink.
When installed in their intended horizontal position, these chambers operate under predictable thermal dynamics. However, vertical orientation can slightly alter internal fluid distribution.

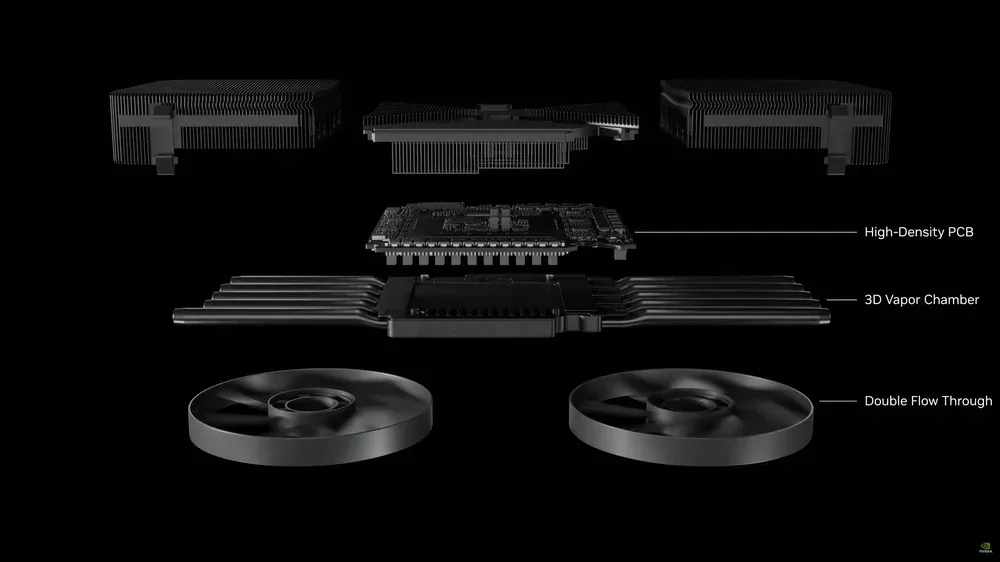

High-end GPU cooler design with vapor chamber and heat pipe structure
In some cases, liquid distribution inside the chamber may shift, potentially reducing efficiency in certain thermal cycles. While modern designs are increasingly engineered to tolerate multiple orientations, performance differences can still occur depending on the GPU model and cooling architecture.
Because manufacturers rarely publish detailed orientation testing data, it can be difficult for builders to predict real-world results without testing the configuration themselves.
Performance Impact: What to Expect
The thermal impact of vertical GPU mounting is not uniform. It varies depending on:
- Case airflow design
- GPU thickness and fan configuration
- Distance from side panel
- Ambient room temperature
- Presence of bottom intake fans
In most real-world builds, users observe one of three outcomes:
- Minimal change (0–3°C increase) – well-ventilated cases with good spacing
- Moderate increase (5–10°C) – average mid-tower setups
- Significant increase (10°C+) – tight glass-panel cases with limited clearance
The variability is why [keyword] vertical GPU mounting is often considered an aesthetic-first modification rather than a performance upgrade.
When Vertical Mounting Makes Sense
Despite its thermal trade-offs, vertical GPU mounting remains popular for good reason. It makes sense in scenarios such as:
- Showcase builds with tempered glass panels
- RGB-focused aesthetic PC setups
- High-end GPUs with visually striking cooler designs
- Custom water-cooled systems where airflow is less critical
In custom liquid-cooled systems, for example, airflow limitations become far less relevant since heat is dissipated through coolant loops rather than case air circulation.
Final Considerations Before Installation
Before committing to a vertical GPU setup, builders should carefully evaluate their case layout and cooling strategy. The most important factor is clearance between the GPU fans and the side panel.
If the spacing is too tight, airflow restriction will likely outweigh the visual benefits. In that case, using a higher-quality adjustable bracket or choosing a case designed specifically for vertical mounting is recommended.
Ultimately, the success of [keyword] vertical GPU mounting depends on balancing aesthetics with thermals. While it rarely improves performance, it can be a worthwhile modification when implemented in a well-ventilated system with proper spacing and airflow planning.
Conclusion
Vertical GPU mounting transforms a standard PC build into a visually striking showcase, but it introduces real thermal and engineering trade-offs. Reduced airflow and potential cooling inefficiencies mean that GPU temperatures often increase slightly, and in some cases significantly.
For builders prioritizing aesthetics, it remains one of the most impactful modifications available. For those focused purely on performance, traditional horizontal mounting still offers the most reliable thermal behavior.
Before making the switch, evaluate your case airflow, GPU size, and mounting clearance carefully—because once installed, the only real way to know the outcome is to test it under load.
