AutoCAD users often encounter a frustrating interface glitch where the AutoCAD Status Bar jumps up and down unexpectedly while working in Model Space. In some cases, the Model and Layout tabs also shift vertically, creating a jittery and unstable drawing experience. This guide explains the issue, its causes, and practical fixes related to the [keyword], helping you restore a smooth and stable workspace in AutoCAD or F/X CAD.
The problem typically appears during cursor movement or when switching between tabs, making the interface feel unresponsive or unstable. While it does not affect drawing data directly, it significantly disrupts workflow efficiency and precision.
Understanding the AutoCAD Status Bar Jump Issue
The Status Bar in AutoCAD displays essential tools such as coordinates, OSNAP, grid settings, and annotation controls. When it malfunctions, it may switch between one-row and two-row layouts automatically.
This resizing behavior causes the entire lower UI area to shift, which is why users observe a “bouncing” or “flickering” effect in Model Space and Layout tabs.
In many cases, this issue is mistaken for a graphics or mouse problem, especially when the drawing view appears to move slightly. However, it is primarily a UI layout constraint issue rather than a rendering error.
Model and Layout Tabs Moving Unexpectedly
When the Status Bar resizes dynamically, the Model and Layout tabs are pushed upward or downward to accommodate the changing layout. This creates a visible “jumping” effect, especially when switching between tabs.
This issue becomes more noticeable on lower-resolution displays or when too many Status Bar tools are enabled, causing AutoCAD to constantly adjust available space.
Cause of the Status Bar Jitter Problem
The root cause of the issue is that the Status Bar becomes stuck between single-row and double-row display modes. AutoCAD continuously recalculates layout space based on cursor position and active tools, leading to instability.
Common triggers include:
- Too many active Status Bar toggles (coordinates, grid, snap, etc.)
- Insufficient horizontal screen space
- Dynamic UI adjustment conflicts in Model/Layout switching
- Resolution scaling issues on certain monitors
In essence, the interface cannot decide how to properly allocate space, causing repeated layout recalculations.
How to Fix the AutoCAD Status Bar Jump Issue
There are several effective solutions depending on your setup and workflow needs.
1. Adjust Status Bar Width or Layout
One of the simplest fixes is to give the Status Bar more consistent space.
- Resize the AutoCAD window wider if possible
- Disable unnecessary Status Bar tools
- Reduce visible elements like coordinates or tracking
This prevents AutoCAD from toggling between one and two rows.
Dock Model and Layout Tabs Properly
A highly effective fix is to lock the Model and Layout tabs above the Status Bar, preventing them from shifting dynamically.

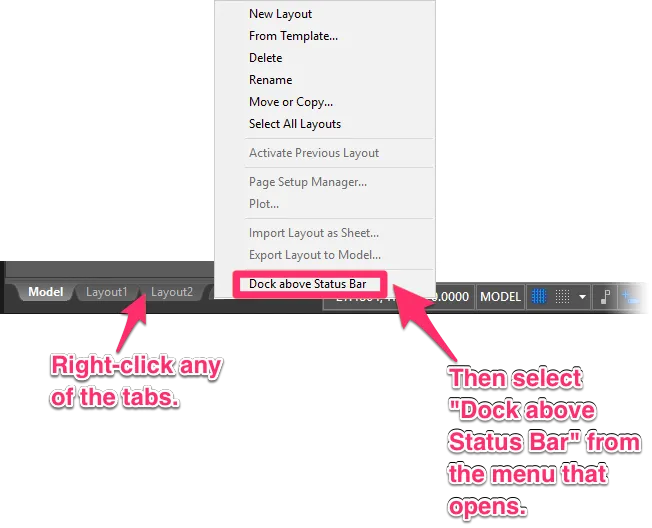

Right-click any Model or Layout tab and select Dock above Status Bar.
This ensures the tabs remain fixed and no longer respond to Status Bar resizing behavior.
After applying this setting, the interface stabilizes and the vertical “jumping” effect is eliminated.
2. Optimize Status Bar Settings
Another reliable approach is to simplify the Status Bar configuration:
- Turn off rarely used toggles (e.g., Dynamic Input, Tracking, Coordinates)
- Keep only essential drafting tools enabled
- Avoid overcrowding the Status Bar
This reduces layout recalculations and prevents AutoCAD from switching display modes unexpectedly.
3. Check Display Scaling and Resolution
On some systems, display scaling settings can worsen UI instability.
- Set scaling to recommended values (100% or 125%)
- Ensure screen resolution matches monitor native resolution
- Restart AutoCAD after changes
These adjustments help AutoCAD render interface elements consistently.
Additional Notes for Stable Performance
While the Status Bar issue is primarily UI-related, it can sometimes be mistaken for performance lag or mouse jitter. If your cursor itself is also unstable, the issue may be unrelated and require separate troubleshooting.
Maintaining a clean and minimal UI setup in AutoCAD is key to avoiding these interface conflicts.
Conclusion
The AutoCAD Status Bar jumping issue is caused by dynamic layout conflicts between single-row and double-row display modes. By adjusting the Status Bar settings, docking Model/Layout tabs properly, and optimizing display configuration, you can completely eliminate the jittery behavior.
For the best results, combine multiple fixes—especially docking the tabs above the Status Bar and reducing unnecessary toolbar clutter—to achieve a stable and professional drafting environment.
