AutoCAD is a premier computer-aided design (CAD) software used globally by professionals to create precise 2D and 3D technical drawings. Developed by Autodesk, it has become an industry standard across architecture, engineering, and construction. While newer versions are released annually, AutoCAD 2010 remains one of the most beloved iterations due to its stability, efficient resource management, and compatibility with older hardware.
In this guide, we will explore the core features of this classic version, detail the system requirements, and provide a step-by-step walkthrough for a successful installation.
Core Features and Enhancements in AutoCAD 2010
Autodesk introduced significant improvements in this version to maximize productivity and streamline the design process. Whether you are a seasoned engineer or a design student, these features offer a robust toolset for any project.
- Integrated Design Ecosystem: Provides a specialized set of tools for architects and engineers to complete daily tasks efficiently.
- Enhanced 3D Modeling: Built-in rendering tools facilitate the creation of complex 3D models with realistic lighting and textures.
- Intelligent Object Creation: Projects can be built using architectural objects like walls, doors, and windows that behave logically within the design space.
- Streamlined Documentation: Exporting, printing, and annotating designs is more intuitive, ensuring that technical specifications are clear for stakeholders.
A Modernized User Interface
One of the most notable changes is the task-oriented interface. The Ribbon panel prioritizes the most frequently used tools based on your current workflow. This reduces the time spent searching through menus and allows even beginners to adapt quickly to the software’s environment.
Optimization and Space Saving
AutoCAD 2010 allows users to reclaim screen real estate. Tabs can be minimized or hidden entirely by right-clicking the tab bar. This level of customization ensures that your workspace is clutter-free, focusing entirely on the drawing canvas.
Digital Signatures and PDF Integration
To enhance security and collaboration, this version supports digital signatures through the Design Review tool. This allows designers to sign documents, verifying that no unauthorized changes were made after approval. Additionally, the ability to import and export PDF files directly from the Ribbon panel eliminates the need for third-party PDF printers.
System Requirements for AutoCAD 2010
Before proceeding with the download and installation, ensure your computer meets the minimum specifications. AutoCAD 2010 is famous for its “lightweight” nature compared to modern versions, making it ideal for budget PCs or laptops.
Standard Requirements (32-bit & 64-bit)
| Component | 32-bit Requirements | 64-bit Requirements |
|---|---|---|
| Operating System | Windows XP/Vista/7/8/10 | Windows XP/Vista/7/8/10 |
| CPU | Intel Pentium 4 or AMD Athlon 3.0 GHz | AMD Athlon 64 / Intel EM64T |
| RAM | 2 GB minimum | 2 GB minimum |
| Hard Drive | 1 GB free space | 1.5 GB free space |
| Display | 1024 x 768 resolution | 1024 x 768 resolution |
Additional Requirements for 3D Modeling
If you intend to work extensively with 3D models, Autodesk recommends increasing your hardware capacity to a 1280 x 1024 resolution and ensuring your graphics card is Direct3D-capable with at least 2 GB of dedicated disk space for swap files.
Step-by-Step Installation Guide
Follow these instructions carefully to ensure a smooth setup. It is highly recommended to disable your internet connection and firewall temporarily during the installation process to prevent background conflicts.
- Extract Files: After downloading the package, use WinRAR or a similar tool to extract the folders.
- Run Setup: Open the extracted folder, right-click on the
Setup.exefile, and select Run as Administrator. - Install Products: Select Install Products, check the box for AutoCAD 2010, and click Next.

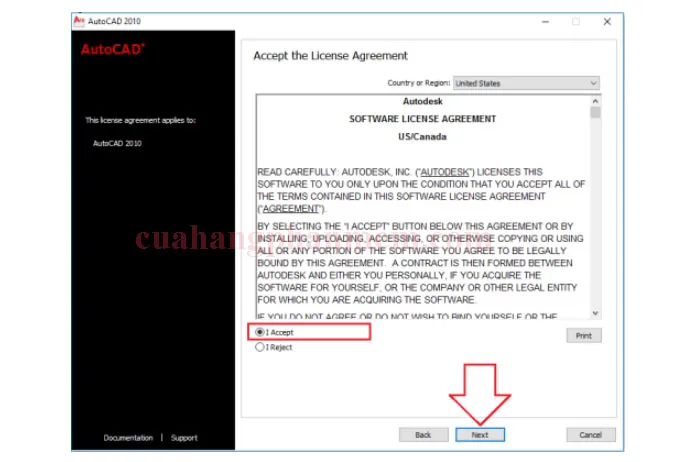

- Accept Terms: On the license agreement screen, select I Accept and click Next.
- Enter Credentials: Input your Serial Number and Product Key. You can use standard keys provided by your administrator or institution.
- Finalize Installation: Click Install. Once the process reaches 100%, click Finish to exit the installer.
Activating the Software
Once the installation is complete, launch the application to begin the activation process.
- Launch the software and select the Activate option when prompted.
- Follow the on-screen instructions to verify your license. If you are using a standalone license, ensure the Request Code matches your registration documents.
- Once the activation code is entered, the software will confirm successful registration.

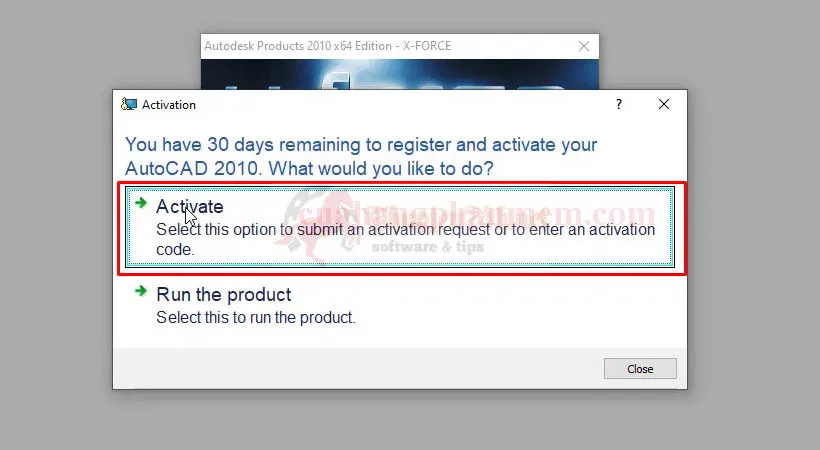

The activation window showing license status and registration options
Conclusion
AutoCAD 2010 remains a powerful and versatile tool for the modern designer who values performance and reliability. By following the steps above, you can set up a stable design environment that handles complex 2D and 3D tasks with ease. Whether you are maintaining legacy drawings or starting new projects, this version provides the essential tools needed for professional technical drafting.
