Understanding AutoCAD External References (Xrefs)
AutoCAD Xrefs allow you to attach external files into your current drawing without physically merging them. This means your project stays lightweight while still referencing external data in real time.
This workflow is widely used in architecture, engineering, and construction because:
- Multiple team members can work on separate drawings simultaneously
- Updates in referenced files automatically reflect in the main drawing
- File organization becomes much more structured
- Errors due to manual copying are significantly reduced
Typical supported formats include:
- DWG files
- PDF underlays
- Images (JPG, PNG, etc.)
- Point clouds and DGN files
Setting Up the Host Drawing for Xrefs
Before attaching any external references, you need to prepare a host drawing, which acts as the main container for all linked files.
Start by creating a new AutoCAD drawing and configure the basic settings such as units and scale.

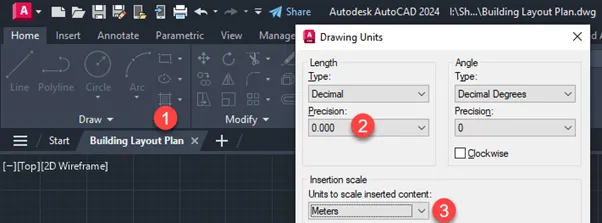

In this example, we set the drawing units to meters with a precision of three decimal places, which is commonly used in architectural projects.
Once the setup is complete, save your file as something like Building Layout Plan.dwg. This will serve as the central file where all external references will be attached.
Attaching External References (DWG Files)
To insert external files, you can use either the XREF command or the ATTACH command in AutoCAD.
Navigate to:

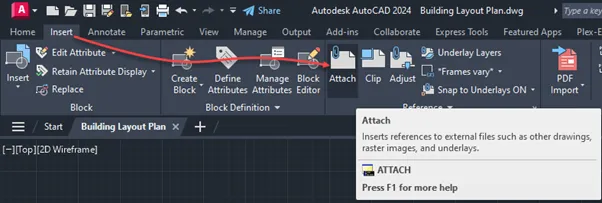

- Insert tab → Reference panel → Attach
This opens the file selection window where you can choose your DWG reference.
Once activated, the External Reference process allows you to select a DWG file and bring it into your current workspace.
Selecting and Loading Reference Files
After launching the attach process, AutoCAD prompts you to choose the file type and location of the external reference.

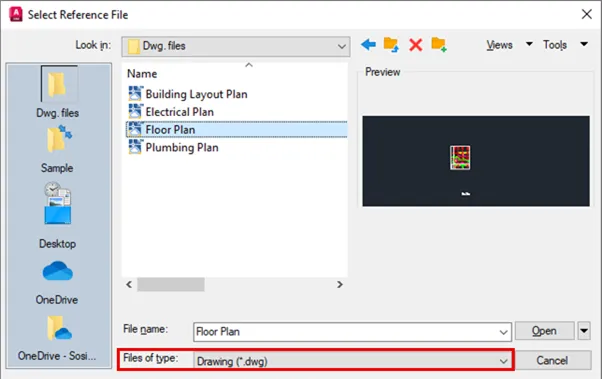

Make sure the file type is set to *DWG (.dwg)**; otherwise, your files may not appear in the browser window.
After selecting the file, click Open to proceed to the attachment settings window.
Configuring Xref Attachment Settings
The Attach External Reference dialog box allows you to control how your reference behaves inside the host drawing.
Key options include:
- Scale – adjusts the size of the referenced file
- Insertion Point – defines placement location
- Rotation – sets orientation of the Xref
- Path Type – controls file linking method (Relative, Full, No Path)
- Reference Type – chooses between Attachment and Overlay

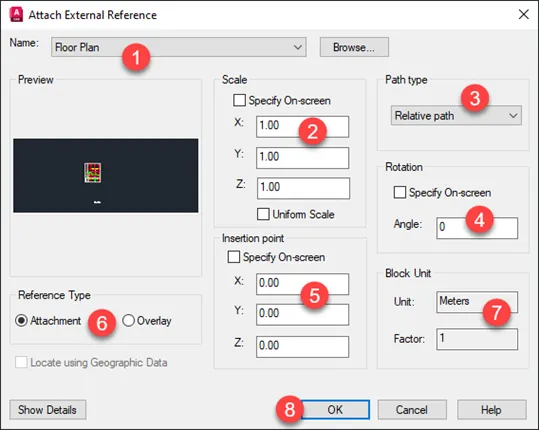

AutoCAD Xref attachment settings dialog for controlling scale and path type
For most collaborative projects, Relative Path + Attachment type is recommended because it keeps file relationships stable when moving folders or sharing projects.
Understanding Attachment vs Overlay
One of the most important decisions in [keyword] workflows is choosing between Attachment and Overlay.
Attachment
- Carries Xref into nested references
- Useful for full project integration
- Best for final coordinated drawings
Overlay
- Only visible in the current drawing
- Prevents nested duplication
- Ideal for background references or temporary coordination
Choosing the correct reference type helps prevent unnecessary file duplication in large projects.
Working with Image References in AutoCAD
AutoCAD Xrefs are not limited to DWG files. You can also attach images such as site photos, scanned drawings, or design references.
Using the same ATTACH command, select an image file and insert it into your drawing space.
This feature is useful when combining visual references with technical CAD drawings.
Editing External References
One of the strongest advantages of Xrefs is the ability to update them without breaking the main file.
You can modify references in two ways:
Edit Reference In-Place
This method allows you to edit the Xref directly inside the host drawing environment without opening a new file.
This is especially useful when you need to compare the reference with the main drawing in real time.
Open Reference Method
Alternatively, you can open the referenced file in a separate tab, make changes, and save it.
After returning to the host drawing, AutoCAD will prompt you to reload the updated reference.
This ensures that all modifications are synchronized properly across your project files.
Clipping External References
Sometimes, you only need to display a portion of an external reference. AutoCAD provides a Clipping Boundary tool for this purpose.
You can define a rectangular or polygonal clipping area to hide unnecessary parts of the Xref.
Creating clipping boundary for Xref in AutoCAD to mask unwanted areas
Clipping is especially useful in large architectural plans where only specific sections are relevant to the current design.
Handling Unresolved References
One common issue in Xref management is missing or unresolved files. This happens when:
- Files are moved or deleted
- File paths are incorrect
- Network storage becomes unavailable
AutoCAD marks these references with warning icons in the External References palette.
To fix this:
- Open the XREF manager
- Locate missing file
- Right-click and select Change Path
- Re-link the correct file location
Using relative paths can prevent most of these issues in collaborative environments.
Packaging Projects with eTransmit
When sharing CAD projects, simply sending the DWG file is not enough. You must include all referenced files.
AutoCAD provides the eTransmit tool, which packages:
- DWG files
- Xrefs
- Fonts
- Plot styles
- Images and dependencies
This ensures that the recipient can open the project without missing links or errors.
Frequently Asked Questions (FAQ)
Can Xrefs be exploded?
No. Xrefs cannot be exploded directly. However, you can bind them into the drawing first and then explode the resulting block if needed.
What is the difference between bind and insert?
- Bind keeps Xref as a block with prefix naming
- Insert merges Xref directly into drawing layers
Why is my Xref not showing?
Most likely causes include incorrect file path, missing file location, or unsupported file type settings.
Summary
AutoCAD External References are a core feature for efficient CAD collaboration. By using Xrefs correctly, you can:
- Improve team coordination
- Reduce file size and complexity
- Maintain real-time updates across projects
- Avoid duplication and version conflicts
Mastering [keyword] workflows in AutoCAD ensures better control over large-scale projects and significantly improves productivity in professional design environments.
For best results, always use relative paths, organize your project folders carefully, and package final drawings using eTransmit before sharing.
